ESP32-P4-Module (esp32-p4c5miniboard)
The ESP32-P4-Module is a high-performance, versatile embedded core system module. Its design is centered around the ESP32P4C6/ESP32P4C5 core board.
This module provides an extremely rich set of peripheral interfaces and functional units, including camera (CSI), display (DSI), audio, USB, and various power protection circuits. It is specifically designed for advanced IoT applications requiring complex human-machine interaction, multimedia processing, multi-protocol wireless connectivity, and high-speed data communication.
Features
- High-Performance MCU: Equipped with RISC-V 32-bit dual-core and single-core processors.
- Memory Architecture: 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM.
- Multimedia Processing: Integrated JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H264 video encoder.
- Integrated Memory: In-package stacked 32 MB PSRAM and external 16 MB Serial Flash.
- Extensive I/O: 2*2*17 pins, leading out 55 programmable GPIOs from ESP32-P4 and 9 GPIOs from ESP32-C6/ESP32-C5.
- Wireless Connectivity: Supports Wi-Fi 6 and Bluetooth 5.0 (LE).
- Security: Secure boot, Flash encryption, hardware cryptographic accelerators (AES, SHA, RSA, ECC, RNG), and hardware access protection (APM).
Core Specifications
| Category | Component | Functional Description |
|---|---|---|
| Main Controller | ESP32P4C6/C5 Core Board | ESP32-P4: High-performance Xtensa® or RISC-V application processor (up to 400 MHz). ESP32-C6/C5: Wireless co-processor supporting Wi-Fi 6 and BT 5.0. |
| USB System | TS3USB221ARSER | High-speed USB 2.0 (480 Mbps) 1:2 multiplexer, used for switching between Type-C and USB-A interfaces. |
| Audio System | ES8311, NS4150, LMA3729T421-OA1 | ES8311: Low-power mono audio codec. NS4150: 3W power amplifier. LMA3729T421-OA1: Silicon microphone. |
| Display System | SY7200 | High-efficiency backlight boost chip for DSI displays. |
| Power Management | LM66200DRLR, MT9700 | LM66200DRLR: Dual ideal diode. MT9700: Adjustable current-limited power distribution switch. |

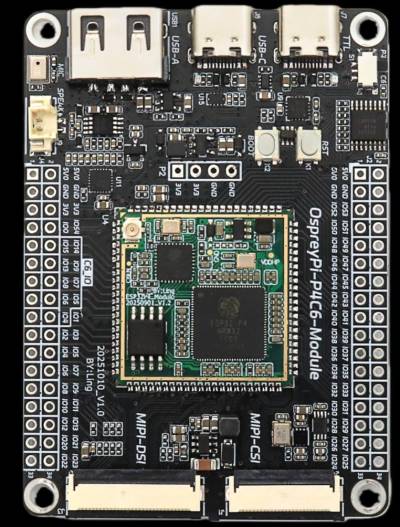

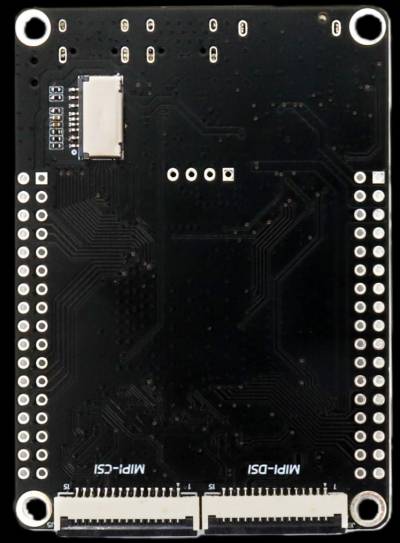

| Interfaces | CSI / DSI | Front: CSI Camera (24P 0.5mm), DSI Display (30P 0.5mm). Back: MIPI-CSI (15P 1.0mm), MIPI-DSI (15P 1.0mm). |
Development & Debugging
- Software Environment: Optimized for Visual Studio Code with ESP-IDF extension.
- Firmware Flashing: Use the `flash_download_tool`.
- Serial Debugging: On-board USB-to-TTL (CH343) for real-time log output.
- Dual-Core Boot Strapping: Via the RS2233 analog switch, you can select whether to flash the ESP32-P4 or the ESP32-C6/C5 core.

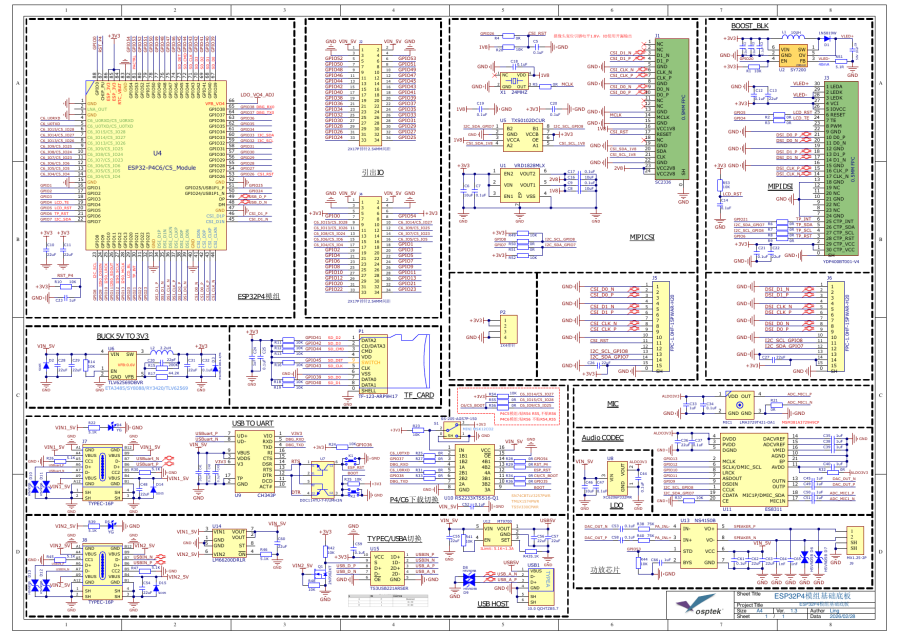

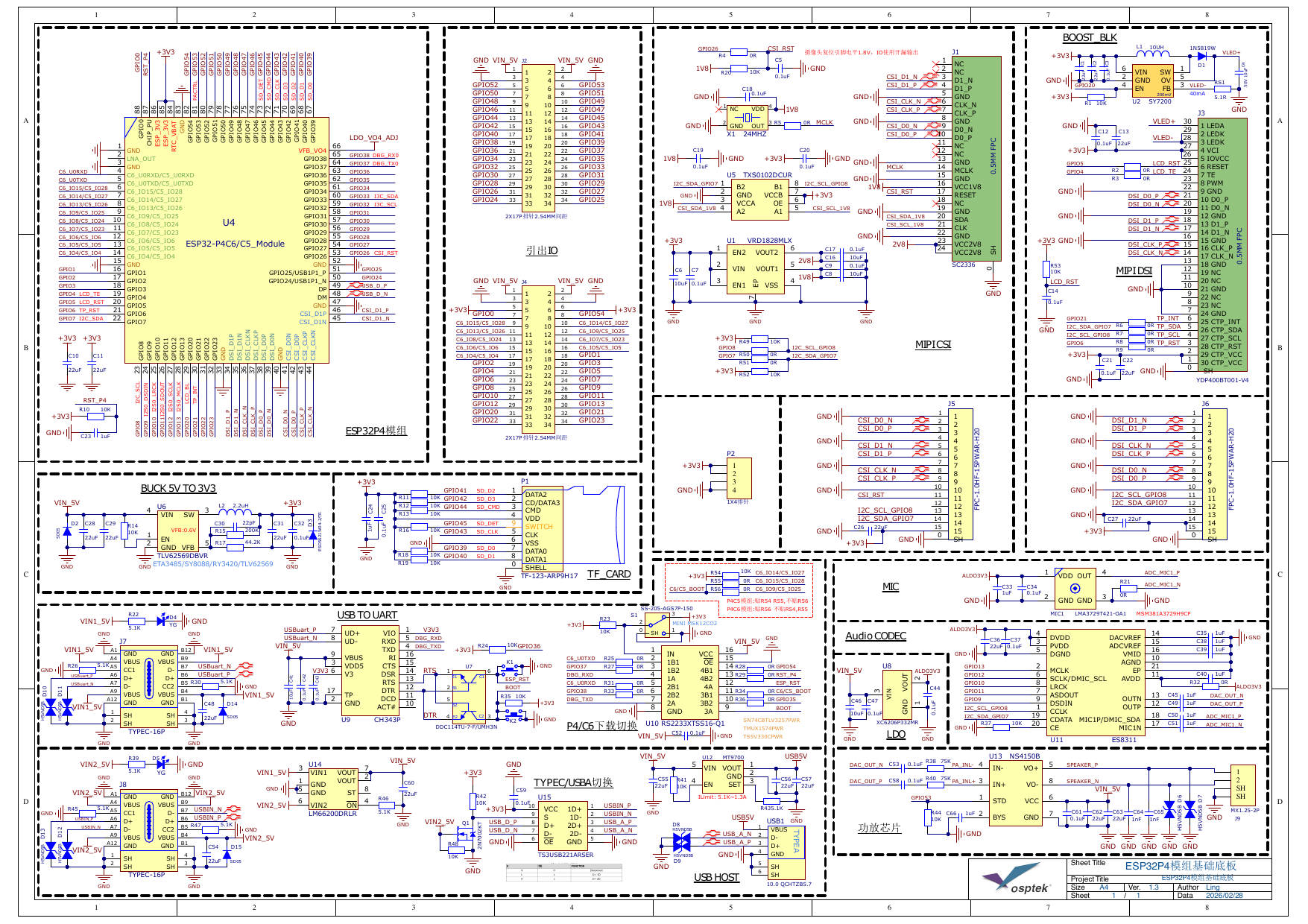

Schematic
